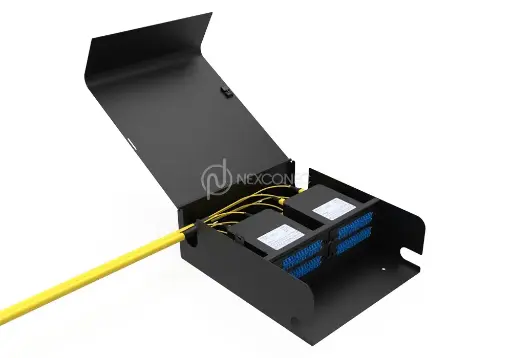

Nexconec modular wall box accepts 4 LGX Modules or LGX pass-thru adapter plates for a total of 96FO with LC configuration. Modular small factor box for multi-application with MPO System, Pre-terminated cables or conventional splicing.

Box is supplied unloaded and the modules and plates are supplied separately, as well as splicing accessories.

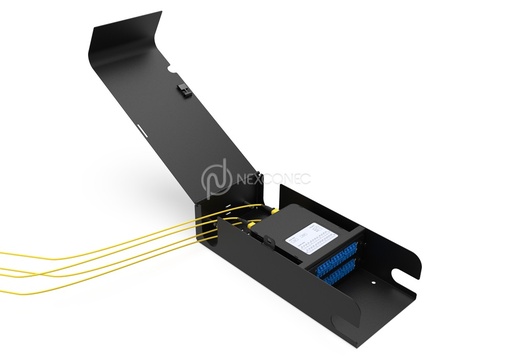

Nexconec modular wall box accepts 2 LGX Modules or LGX pass-thru adapter plates for a total of 48FO with LC configuration. Modular small factor box for multi-application with MPO System, Pre-terminated cables or conventional splicing.

Box is supplied unloaded and the modules and plates are supplied separately, as well as splicing accessories.

Nexconec modular wall box accepts 4 LGX Modules or LGX pass-thru adapter plates for a total of 96FO with LC configuration. Modular small factor box for multi-application with MPO System, Pre-terminated cables or conventional splicing. Box is supplied unloaded and the modules and plates are supplied separately, as well as splicing accessories.

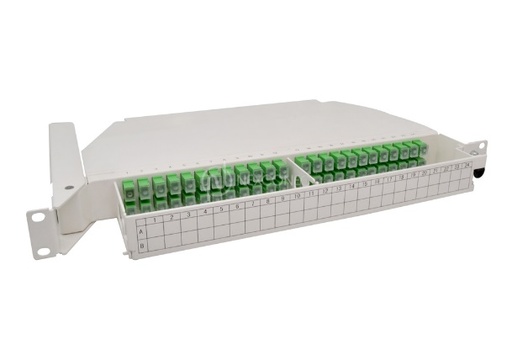

Rotary Swing out patch panels are designed for the FTTH networks, specifically for the street cabinet where full front access is required. This 1U panel accommodates 48 SC/APC adapters and is loaded with bend insensitive pigtails G657A2 and the complete splicing trays and rooting.

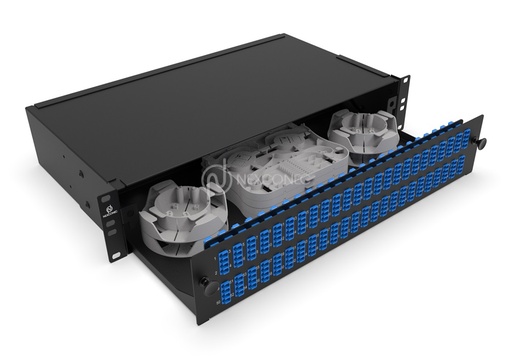

Nexconec sliding patch panel accepts 48 adapters SC Duplex or LC Quad within 2U space. The panel can be pre-loaded completely with the required adapters or pre-loaded with pigtails and splice accessories. The tray is locked by 2 plastic latches and lowers to a 45deg angle when fully extended. Installation and labelling are simple and easy.

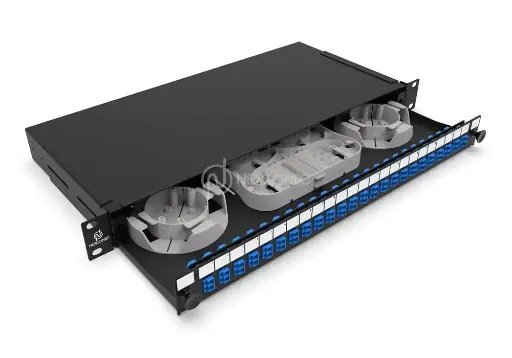

Nexconec sliding patch panel accepts 24 adapters SC Simplex or LC Duplex within 1U space. The panel can be pre-loaded completely with the required adapters or pre-loaded with pigtails and splice accessories. The tray is locked by 2 plastic latches and lowers to a 45deg angle when fully extended. Installation and labelling are simple and easy.

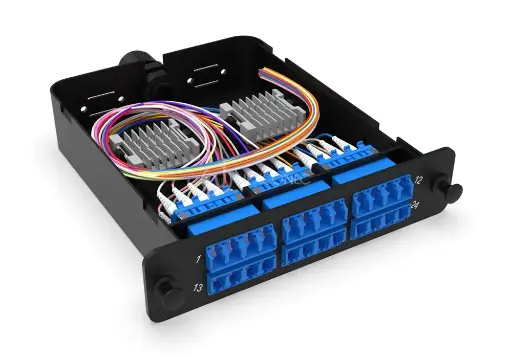

NEXCONEC® LGX splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. For up to 24 splices in LC configuration or 12 in SC. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type.

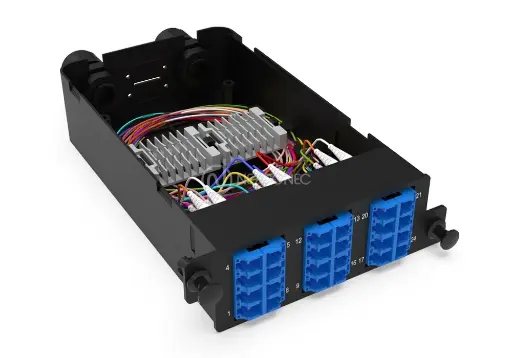

NEXCONEC® HD splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. For up to 24 splices in LC configuration or 12 in SC. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type.

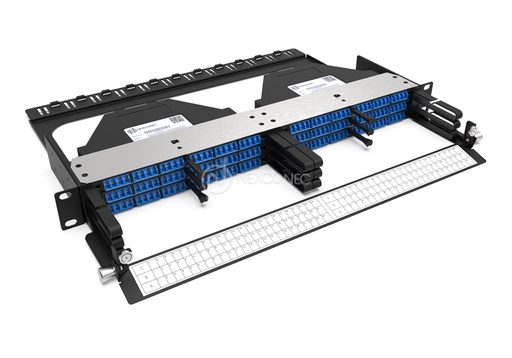

Nexconec NGX High-Density Frame accepts up to 6 NGX Modules for a total of 144FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing.

Nexconec High Density MTP/MPO to LC breakout Patch Panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center. Up to 144 Fibers in only 1U space.

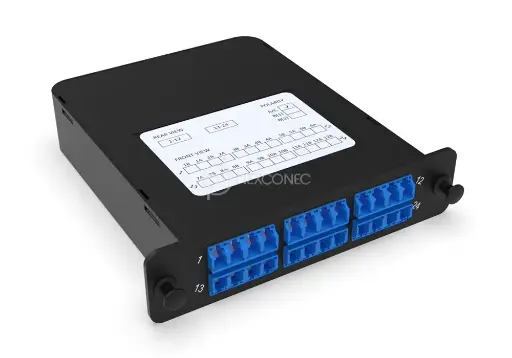

NEXCONEC LGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The LGX cassettes are designed to easily plug into NEXCONEC LGX panels and chassis range. The cassettes eliminate the need for splicing reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

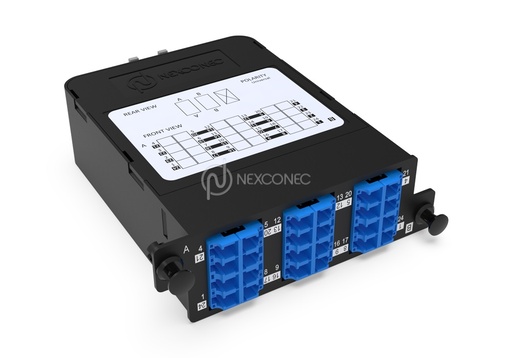

NEXCONEC HD cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The HD cassettes are designed to easily plug into NEXCONEC HD 1U 4 slot chassis and each chassis can populate up to 96F.

The cassettes eliminate the need for splicing reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

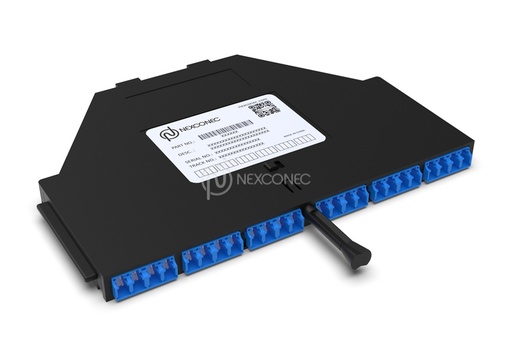

NEXCONEC NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

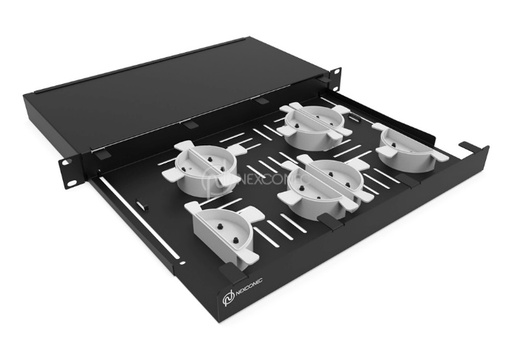

Nexconec 1U fiber cable storage sliding panel, mounted on 19” network racks. This slide-out tray fiber cable storage patch panel could make your fiber cable management neat and professional in the telecommunication room, data centers to storage excess fibers and cables. Easy front access with inner cable management spools which provides protection and coiling of the excess lengths of the patch cords.

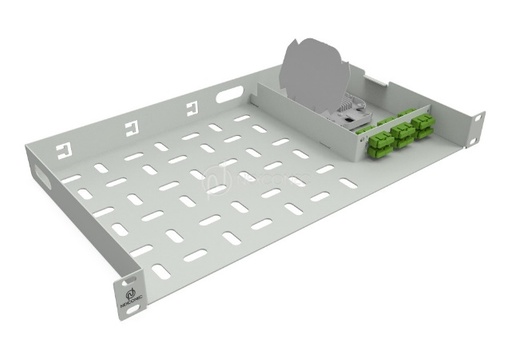

The NEXCONEC® 1U 12 ports SC optical fiber panel & shelve is a 19” (inches) standard mounting type metal rack, uniquely built to contain two separate compartments. 1. Optical Compartment: It comes with an optical area equipped with 6x SC duplex adapter ports & a splice tray for the storage and splicing of 12 fibers. 2. Electro-optical Compartment: The maximum size of (W)305.60mm x (D) 260mm area has capacities to accommodate and provide support for an electro-optical media converter (not included). This fiber cable storage panel is ideal to use in the telecommunication room, data centers to store excess fibers and cables. It could make your fiber cable management neat and professional.

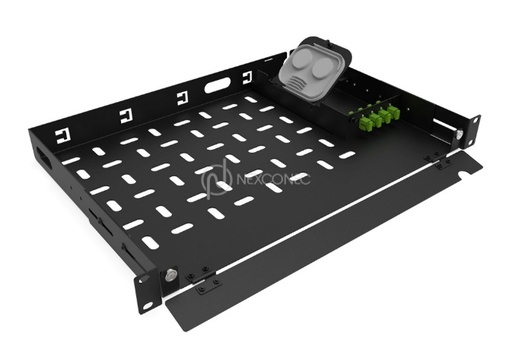

NEXCONEC® 1U 4 ports SC fiber optic panel & shelve, mounted on 19” standard network racks. Optical module of this panel is equipped with 4x SC simplex adapter ports & a splice tray for the storage and splicing of 4 fibers and another Electro-optical compartment provides maximum size of (W)324mm x (D) 286mm large space for fiber/cables management. Use this fiber cable storage patch panel in the telecommunication room, data centers for storage of excess fibers and cables to make your fiber cable management neat and professional.

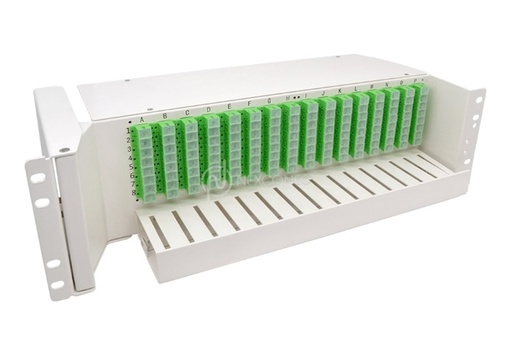

Nexconec 3U rotary splitter panel is widely used in optical communication networks, completing such functions as splicing, splitting and 128-fiber distribution. It can be installed optical splitter (maximum splitting ratio: two 1X64 optical splitter) to implement optical splitting and capacity expansion. After the product left handed rotated, fixing optical splitter and back panel of splicing tray left handed rotated. Backbone inlet adopt embedded way, convenience for operation and maintenance.

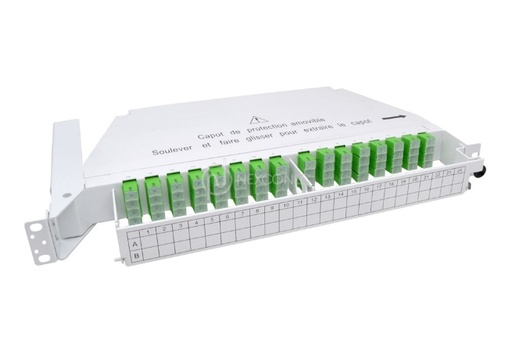

Nexconec 1U rotary splitter panel is widely used in optical communication networks, completing such functions as splicing, splitting and 64-fiber distribution. It can be installed optical splitter (maximum splitting ratio: one 1X64 optical splitter) to implement optical splitting and capacity expansion. After the product left-handed rotated, fixing optical splitter and back panel of splicing tray left-handed rotated. Backbone inlets adopt embedded way, convenience for operation and maintenance.

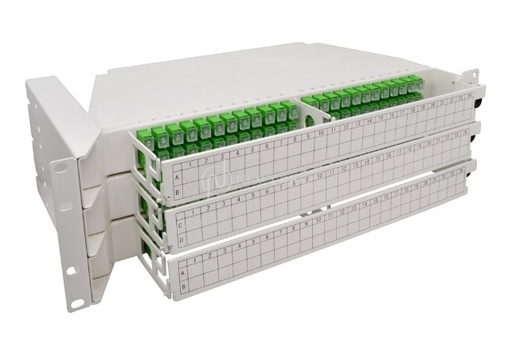

Rotary Swing out 3U patch panels are designed for the FTTH networks, specifically for the street cabinet where full front access is required. This 3U panel accommodates 144 SC/APC adapters and is loaded with bend insensitive pigtails G657A2 and the complete splicing trays and rooting.

Rotary Swing out patch panels are designed for the FTTH networks, specifically for the street cabinet where full front access is required. This 1U panel accommodates 48 SC/APC adapters and is loaded with bend insensitive pigtails G657A2 and the complete splicing trays and rooting.
