RACK MOUNT HOUSING

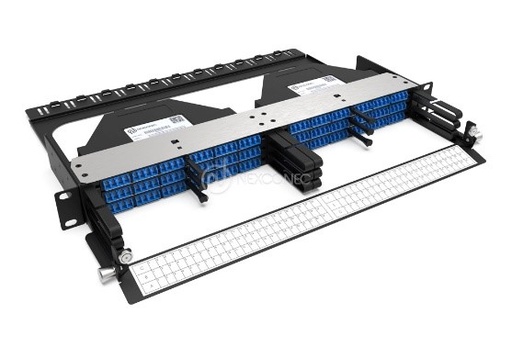

Nexconec NGX High-Density Frame accepts up to 6 NGX Modules for a total of 144FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing.

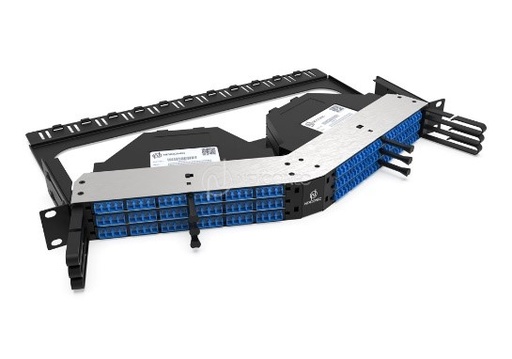

Nexconec NGX Angled High-Density Frame accepts up to 6 NGX Modules for a total of 144FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Angled front with side manager for a better routing of the cabling.
Panel is supplied unloaded and the modules and plates are supplied separately.

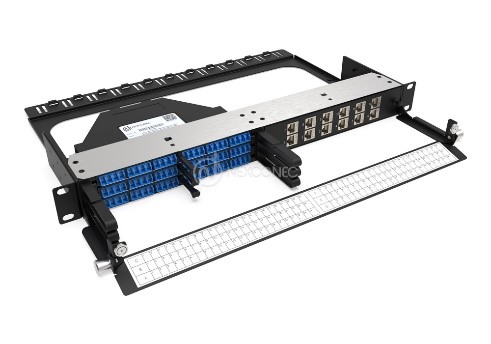

Nexconec NGX High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.
Easy front access with cable manager and removable hinged door, which provides protection of the patch cords as well as labelling. The NGX panels are supplied unloaded and the modules and plates supplied separately.

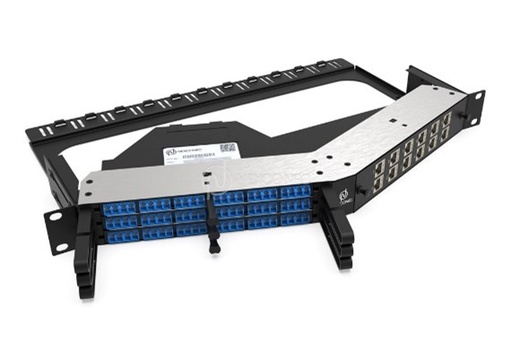

Nexconec NGX Angled High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.
Angled front with side manager for a better lateral routing of the cabling. Panel supplied unloaded and the modules and plates supplied separately.

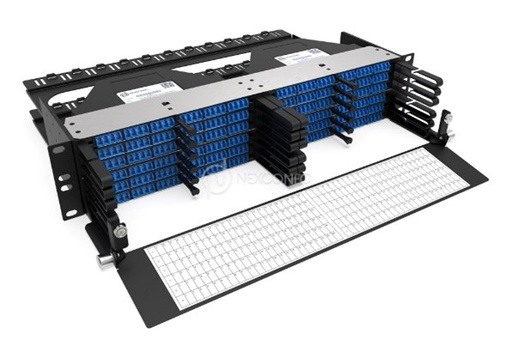

Nexconec NGX High-Density Frame accepts up to 12 NGX Modules for a total of 288FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing.
Easy front access with cable manager and hinged front door which provides protection of the patch cords as well as labelling. Panel is supplied unloaded and the modules and plates are supplied separately.

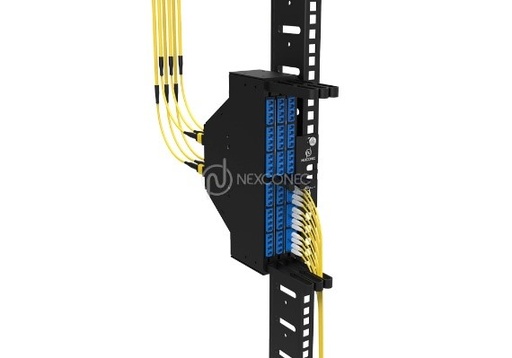

The Zero U Panel adds an additional patch panel location to free up extra space in the cabinet. The zero U panel is installed vertically in the cabinet rail and creates a convenient point for distribution of patch cables within the vertical racking system. The Zero RU bracket accepts up to 3 Nexconec NGX modules. The Bracket is supplied unloaded and the modules are supplied separately.

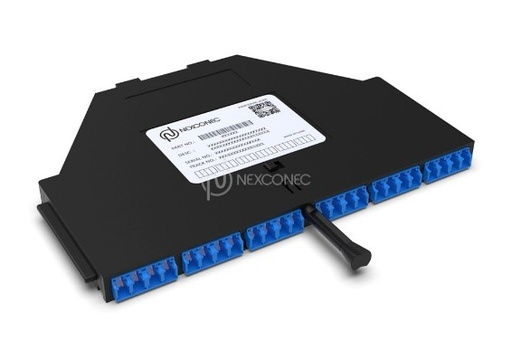

NEXCONEC NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

The NEXCONEC® NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144FO.
The cassettes eliminate the need for splicing, reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater to the customer’s power budget requirements.

NEXCONEC® MPO TRANSITION NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 40G to 10G version, each cassette can hold 3x 8f MPO Base-8 LC fanouts, while the 100G to 10G version can hold 1x 24F MPO Base-24 LC fanout.

NEXCONEC Transition NGX cassettes are pre-terminated ultra high density modules MTP/MPO-LC fanouts that are suitable for up to 40G/100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 24 Fibers 40G to 10G version, each cassette holds 3x 8f MPO-LC fanouts.

NEXCONEC MPO TRANSITION NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 40G/100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 40G to 10G version, each cassette can hold 2x 8f MPO-LC fanouts, while the 40G to 10G version can hold 1 24f MPO-LC fanout.

NEXCONEC MPO TRANSITION NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 40G/100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 40G to 10G version, each cassette can hold 2x 8f MPO-LC fanouts, The MPO and LC ports can be accessed from the front.

The NEXCONEC® NGX 36FO cassettes are pre-terminated modules MTP®/MPO-CS® fanouts. They are designed to be suitable for up to 100G applications, allowing for efficient interconnection between backbone and discrete connections. The NGX cassettes are specifically made to plug into all Nexconec NGX range panels with precision.
These MTP®/MPO-CS® cassettes offer an ultra-high-density solution, which populates impressive capacity of fiber up to 216FO (6x36F) within just 1U of space, when inserted to NGX 1U 6 slots chassis. The MPO and single ferrule connectors are available in Standard and Elite versions to cater to the customer’s power budget requirements.

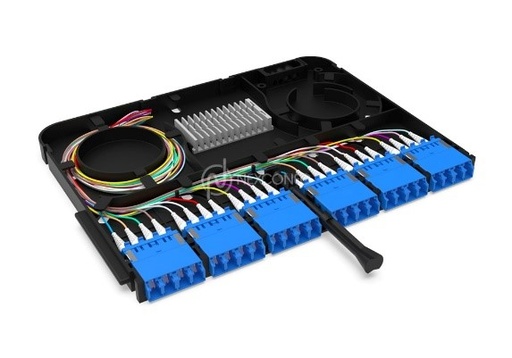

NEXCONEC NGX SPLICING cassettes are designed for splicing up to 24F in a cassette. The NGX fiber splice cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC. The high density splice cassettes are preloaded with adaptors and pigtails supplied with splicing accessories.

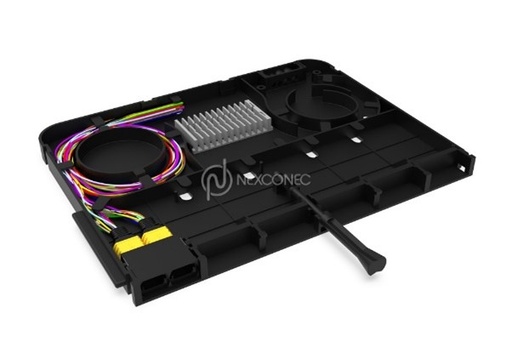

NEXCONEC® NGX MTP/MPO-Splicing cassettes are designed for splicing up to 24F in a cassette with 2xMPO Base-12 Single mode/Multimode MTP/MPO connectors. The NGX cassettes are designed to easy plug into Nexconec NGX 1U 6-slot panel and each chassis can populate up to 144F with LC and 72F with SC. The cassettes are preloaded with adaptors and pigtails supplied with splicing accessories.

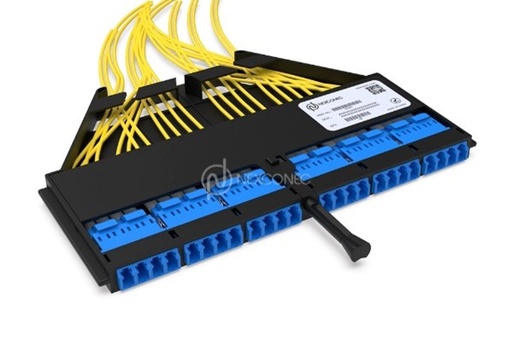

NEXCONEC NGX PATCHING cassette are designed for direct patching of assemblies with no need for transition or splicing thereby saving on additional link losses. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC. The cassettes are preloaded with adaptors such as LC, SC.

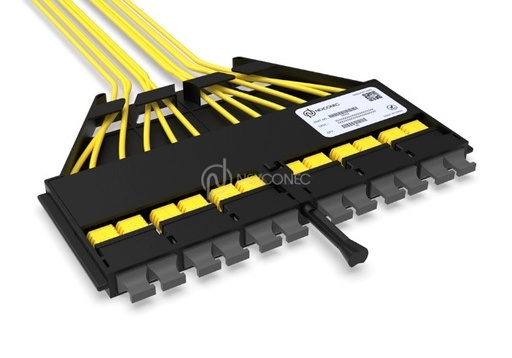

NEXCONEC NGX PATCHING cassette are designed for direct Jumper MTP/MPO assemblies with no need for transition or splicing thereby saving on additional link losses. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 864Fibers with MPO Base-12 per 1RU. The cassettes are preloaded with MPO adaptors.

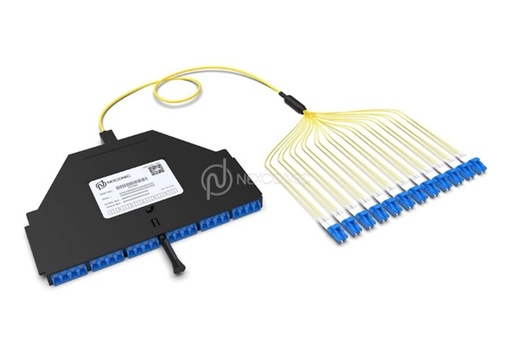

NEXCONEC NGX PRETERM cassettes are designed for pre-terminated assemblies and can be directly loaded into the cassettes with Nexconec patent pending breakout module. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC. The pre-terminated fiber optic assemblies are available in MTP/MPO and various single ferrule options.

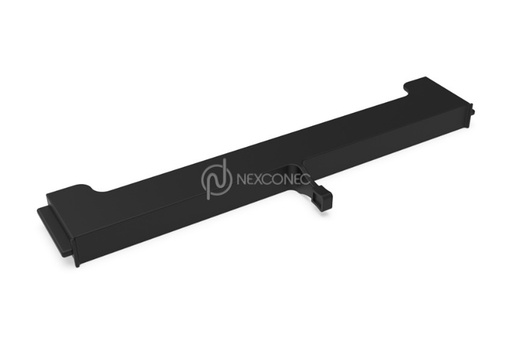

NEXCONEC® NGX Blank Plate is an essential component for high-performance networking system. This robust designed plate simply covers the unused cassette ports and perfectly fit with any of the Nexconec NGX panels.
Whether you need to cover unused ports or protect your network from dust and debris, the NGX Blank Plate provides an effective solution. With its durable construction and precise fit, this plate is a must-have accessory for any serious network administrator.

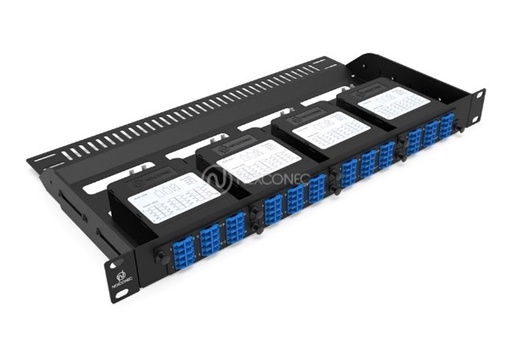

Nexconec high density fixed frame accepts up to 4 HD Modules or HD pass-thru adapter plates for a total of 96FO with LC configuration. Panel is supplied unloaded and the modules and plates are supplied separately.
