Copper Cables

Cable type R7ST4H23S – S/FTP 4x2xAWG23/1 – Cat.7 – pair shield AL/PET tape + overall braid – LSZH jacket – Euroclass Cca s1a,d1,a1

S/FTP CAT 7, 4-pair cable (100 Ohm), with pairs individually shielded with AL/PET tape and overall tinned copper braid, FR LSZH (Low Smoke Zero Halogen) flame and fire retardant jacket, tested up to 1 GHz. Ideal for the realization of transmission channels of Class F.

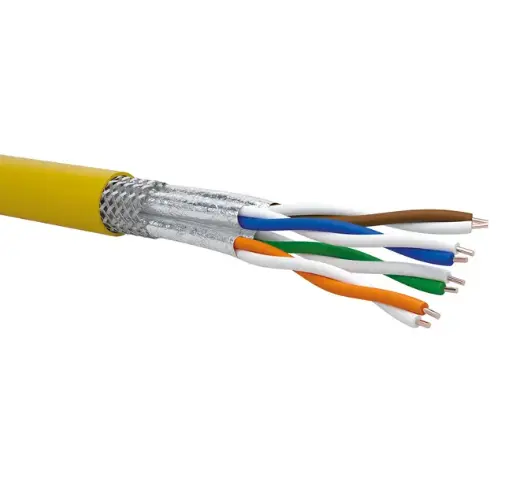

R7AST4H23 S/FTP CAT7A4x2xAWG23/1 – shielded – LSZH – Euroclass B2ca s1a,d1,a1

S/FTP CAT 7A, 4-pair cable (100 Ohm) PiMF with each pair shielded with AL/Mylar tape and overall tinned copper braid, FR LSZH (Low Smoke Zero Halogen) flame and fire retardant jacket, tested up to 1 GHz. Ideal for the realization of transmission channels of Class FA.

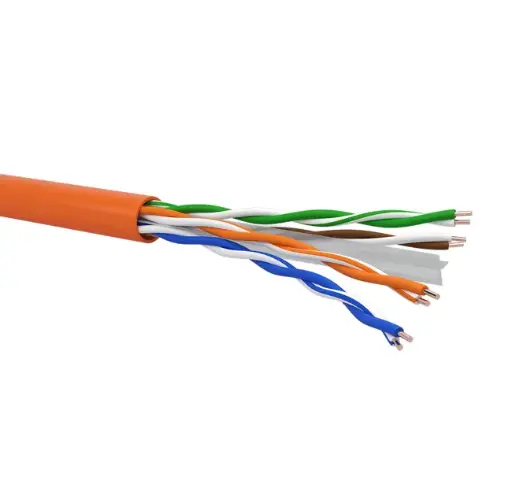

Cable type R6AUT4H23 U/UTP 4x2xAWG23/1 – Cat.6A – LSZH jacket – Euroclass Eca

U/UTP CAT6A unshielded 4-pair cable (100 Ohm) with cross separator, LSZH (Low Smoke Zero Halogen) flame retardant jacket, tested up to 600 MHz Suitable for the realization of 3RD generation transmission channels of Class EA.

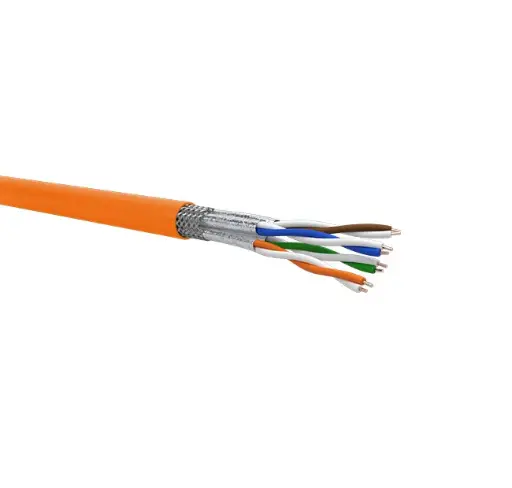

Cable R6ASF4H23 S/FTP CAT.6A 4x2xAWG23/1 – shielded – LSZH jacket Euroclass Cca s1a.d1.a1

S/FTP CAT 6A, 4-pair cable (100 Ohm), with single pairs shielded with AL/PET tape and overall tinned copper braid, LSZH (Low Smoke Zero Halogen) flame and fire retardant jacket, tested up to 500 MHz. Ideal for the realization of transmission channels of Class EA.

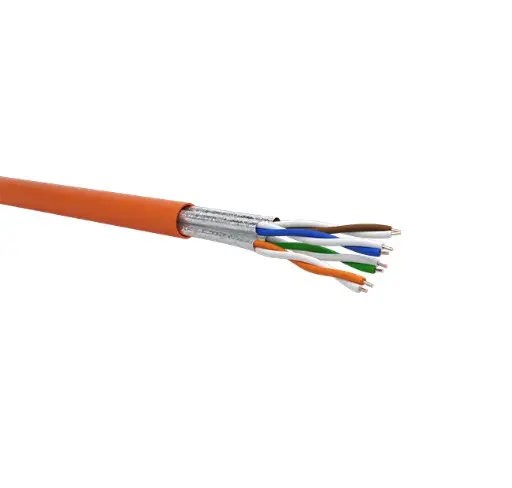

Cable type R6A-UF4H23 U/FTP 4X2X23/1AWG – Cat.6A – LSZH jacket – Euroclass Cca s1a,d1,a1

U/FTP CAT6A 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape applied on each pair, FR-LSZH (Fire Retardant – Low Smoke Zero Halogen) flame retardant jacket, tested up to 500 MHz. Suitable for the realization of transmission channels of Class EA.

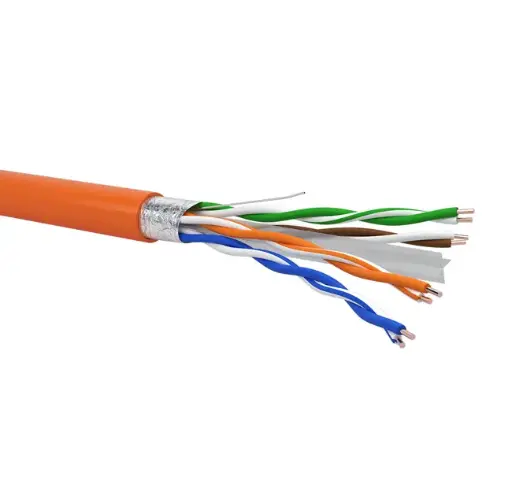

Cable type R6AFT4H23 F/UTP 4x2xAWG23/1 – Cat.6A – overall AL/PET tape – LSZH jacket – Euroclass Eca

F/UTP CAT6A shielded 4-pair cable (100 Ohm) with cross separator, shielded with an Aluminum/Polyester tape, LSZH (Low Smoke Zero Halogen) flame retardant jacket, tested up to 500 MHz Suitable for the realization of transmission channels of Class EA.

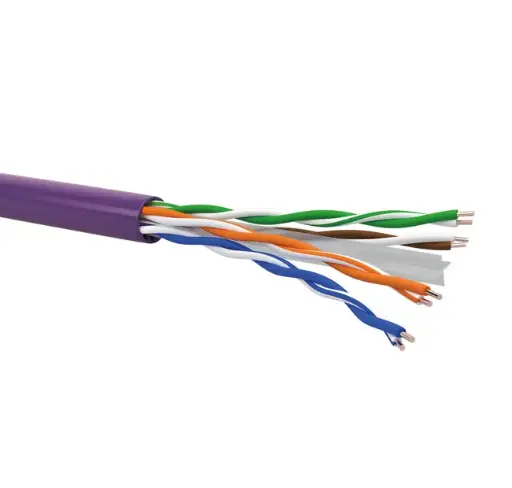

Cavo R6A+UT4H23 U/UTP CAT.6A 4x2xAWG23/1 – non schermato – guaina LSZH Euroclasse Eca

Cavo U/UTP di categoria 6A non schermato a 4 coppie (100 Ohm) con separatore a croce, guaina LSZH (Low Smoke Zero Halogen) non propagante la fiamma, testato fino a 500 MHz. Ideale per la realizzazione di cablaggi orizzontali di terza generazione di Classe EA.

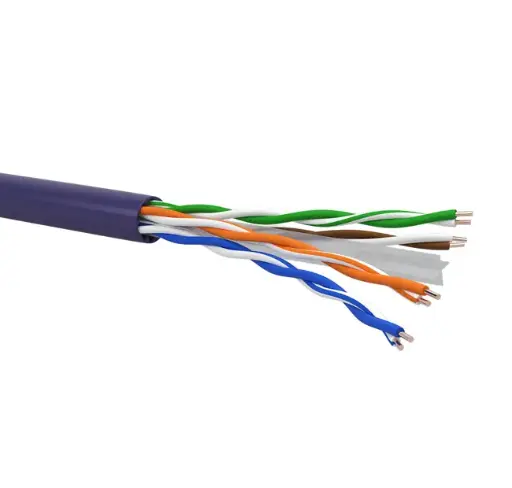

R6A+ UT4H23 U/UTP CAT6A 4x2xAWG23/1 – unshielded – LSZH – Euroclass B2ca s1a, d1, a1

U/UTP CAT6A unshielded 4-pair cable (100 Ohm) with cross separator and non-conductive barrier tape, LSZH (Low Smoke Zero Halogen) flame and fire retardant jacket, tested up to 500 MHz. Suitable for the realization of 3rd generation horizontal cabling of Class EA.

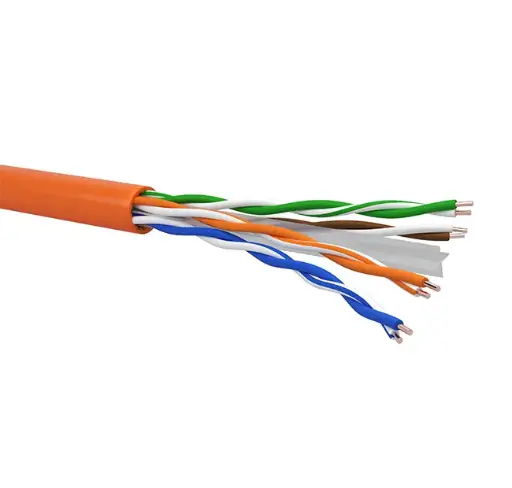

R6A+UT4H23 U/UTP Cat.6A 4x2xAWG23/1 unshielded cable – LSZH jacket – Eca Euroclass

U/UTP CAT 6A unshielded 4-pair cable (100 Ohm) with cross separator and non-conductive barrier tape, LSZH (Low Smoke Zero Halogen) flame retardant jacket, tested up to 500 MHz. Suitable for the realization of transmission channels of Class EA.

Cable type R6UT4YPE23 – U/UTP 4x2x23AWG Cat.6 – PVC/PE double jacket – Euroclass Fca

U/UTP CAT6, unshielded 4-pair cable (100 Ohm) with cross separator and double outer jacket: PVC flame retardant inner jacket and PE outer jacket. Tested up to 500MHz. Suitable for the realization of transmission channels of Class E.

Cable type R6UT4Y23 – U/UTP 4x2x23AWG Cat.6 – LSZH jacket – Euroclass Bca s1a,d1,a1

U/UTP CAT6, unshielded 4-pair cable (100 Ohm) with cross separator, LSZH (Low Smoke Zero Halogen) flame retardant jacket, tested up to 500 MHz Suitable for the realization of transmission channels of Class E.

Cable type R6FT4YPE23 – F/UTP 4x2x23AWG Cat.6 – overall AL/PET tape – PVC/PE double jacket – Euroclass Fca

U/UTP CAT6, unshielded 4-pair cable (100 Ohm) with cross separator, overall aluminum/polyester tape shield and double outer jacket: PVC flame retardant inner jacket and PE outer jacket. Tested up to 500MHz. Suitable for the realization of transmission channels of Class E.

Cable type R6FT4Y23 – F/UTP 4x2x23AWG Cat.6 – overall AL/PET tape – LSZH jacket – Euroclass Eca

F/UTP CAT6, 4-pair cable (100 Ohm) with cross separator, shielded with an aluminum/polyester tape, LSZH (Low Smoke Zero Halogen) flame retardant jacket, tested up to 500 MHz Suitable for the realization of transmission channels of Class E

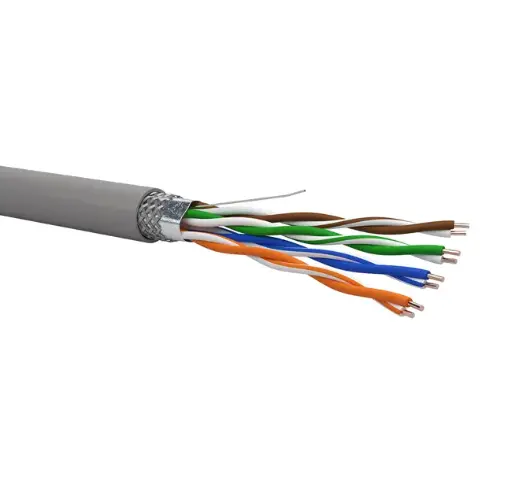

Cable type CPR 6727-C – SF/UTP 4x2xAWG24/1 – Cat.5E – overall AL/PET tape + CuSn braid – LSZH jacket – Euroclass Eca

SF/UTP CAT5E, 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape and tinned copper braid, LSZH (Low Smoke Zero Halogen) outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

Cable type CPR 6727 – F/UTP 4x2xAWG24/1 – Cat.5E – overall AL/PET tape – PVC jacket – Euroclass Eca

F/UTP CAT5E, 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape, PVC outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

Cable type CPR 6727 – F/UTP 4x2xAWG24/1 – Cat.5E – overall AL/PET tape – LSZH jacket – Euroclass Eca

F/UTP CAT5E, 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape, LSZH (Low Smoke Zero Halogen) outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.
