NEXCONEC Outdoor MTP/MPO Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP/MPO Trunks are suitable for up to 100G applications to connect between equipment’s or to interconnect modules/panels in a data center. The MTP/MPO connectors are available in Standard and Elite versions to cater customer’s power budget requirements

NEXCONEC MTP®/MPO 24 fiber ferrule cable assemblies are designed for cable infrastructures which are currently used for, or which are due to be upgraded to, parallel optics 40/100G protocols such as 100G BASE-SR10 or 40G BASE-SR4. The Assemblies are built using 24 fiber ferrule interface, MTP®/MPO connectors, which can be used directly with CFP/CXP 100G transceivers or, when used together with transition modules/cables, can provide 40/100G parallel transceivers or legacy non-parallel optics 4/8/10/16G Ethernet/ fiber channel protocol networks.

NEXCONEC MTP®/MPO 24 fiber ferrule cable assemblies are designed for cable infrastructures which are currently used for, or which are due to be upgraded to, parallel optics 40/100G protocols such as 100G BASE-SR10 or 40G BASE-SR4. The Assemblies are built using 24 fiber ferrule interface, MTP®/MPO connectors, which can be used directly with CFP/CXP 100G transceivers or, when used together with transition modules/cables, can provide 40/100G parallel transceivers or legacy non-parallel optics 4/8/10/16G Ethernet/ fiber channel protocol networks.

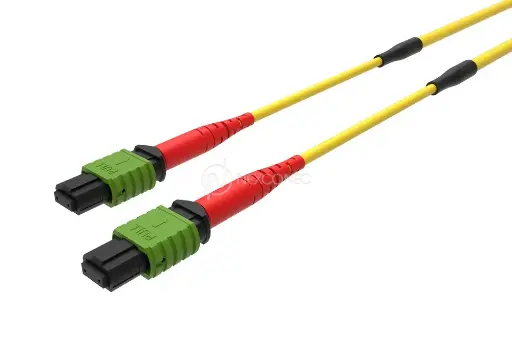

NEXCONEC MTP/MPO Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP/MPO Trunks are suitable for up to 100G applications to connect between equipment or to interconnect modules/panels in a data center. The MTP/MPO connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

NEXCONEC MTP/MPO Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP/MPO Trunks are specifically designed for 40G & 100G applications to connect between equipment or to interconnect modules/panels in a data center. The Trunks are available in Micro cable double jacket and flat cable options suitable for pulling on trays. The MTP/MPO connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

NEXCONEC MTP/MPO Fanouts are small form factor high-density fiber connector assemblies that breakout into discrete single ferrule connectors. Our MTP/MPO Fanouts are suitable for up to 100G applications to connect between equipment or to interconnect modules/panels in a data center. The fanouts also can be used for transitions between high to low bandwidth equipment. The Fanouts are available in Micro cable single and double jacket options suitable and individual connectors are available as simplex/duplex/round duplex cable options. The MTP/MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

NEXCONEC MTP/MPO Fanouts are small form factor high-density fiber connector assemblies that breakout into discrete single ferrule connectors. Our MTP/MPO Fanouts are suitable for up to 100G applications to connect between equipment or to interconnect modules/panels in a data center. The fanouts also can be used for transitions between high to low bandwidth equipment. The Fanouts are available in Micro cable single and double jacket options suitable and individual connectors are available as simplex/duplex/round duplex cable options. The MTP/MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

NEXCONEC MTP/MPO Fanouts are small form factor high-density fiber connector assemblies that breakout into discrete single ferrule connectors. Our MTP/MPO Fanouts are suitable for up to 100G applications to connect between equipment or to interconnect modules/panels in a data center. The fanouts also can be used for transitions between high to low bandwidth equipment. The Fanouts are available in Micro cable single and double jacket options suitable and individual connectors are available as simplex/duplex/round duplex cable options. The MTP/MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

NEXCONEC MTP/MPO QSFP Fanouts are small form factor high density fiber connector assemblies that breakout into discrete single ferrule connectors. Our MTP/MPO Fanouts are specifically designed for QSFP 40G to 10G transition application to connect between equipment or to interconnect modules/panels in a data center. The fanouts can also be used for transitions between high to low bandwidth equipments. The fanouts are available in Micro cable single or double jacket options and individual connectors are available as simplex/duplex/round duplex cable options. The MTP/MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

Nexconec Tactical field deployable cable reels offer a convenient method for roll-out and retrieval of fiber optic cable assemblies as well as a range of communications cabling. Ruggedized Outdoor Armored Flex Cable. Single loose tube up to 12 250micron fibers with aramid strength member. Then in the helical tube and surrounded with metal braiding and PU jacket for high crush resistance for harsh outdoor application. It is ideal for using in communication, broadcast and pro audio applications. Additionally, extendable pull rod and pulley allows operators to easily rotate reel in deployment or take-up situations and easy transportation and deployment.

NEXCONEC® Indoor/Outdoor Preterms offers quick and cost-effective installation for interbuilding, LAN or Campus wide network. The indoor/outdoor preterms are available in Loose Tube and Tight Buffer cable options with special designed modules to breakout individual fibers.

We manufacture preterms with superior fiber/cable performance to withstand outdoor harsh environments and high quality connectors, which offers improved link loss budgets. These preterms are available in 12 up to 144 single-mode or multimode fibers.

These NEXCONEC® Indoor/Outdoor Preterms are made of Microcore Flex Armored cable, contains 12 of 250μm optical fibers in a micro tube, accommodated in the helical flex armored tube and surrounded by E-glass, Kevlar, water blocking yarn and UV resistant LSZH outer jacket. These multi-fiber assemblies are available in single-mode or multimode fiber options. It offers quick and cost-effective installation for interbuilding, LAN or Campus wide network. We manufacture preterms with superior fiber/cable performance to withstand outdoor harsh environments and high-quality connectors.

NEXCONEC® Indoor Preterms offers quick and cost-effective installation within an indoor environment or intrabuilding premises. We manufacture preterm with superior fiber/cable performance, high quality connectors which offers improved link loss budgets. Micro core cables constructed of up to 144 fibers, 900μm or 2mm simplex cables coated with single or double jackets and aramid strength members. Available in different grade of CPR certified cables.

NEXCONEC® fanout cable assembly consists of multiple fiber connectors terminated on ribbon fiber or cable on one end and single fiber connectors terminated on 900μm tubing on the other. A Fan-Out is used to facilitate the conversion from the ribbon to individual fiber format. Used in fiber distribution panels and interconnect modules these ribbon pigtails are suitable for mass fusion splicing. These Fanouts eliminate tedious individual fiber splicing and connectorization. This unique solution reduces installation time and cost budgets.

NEXCONEC® pigtails are suitable for telecommunication networks, data processing networks, FTTx, FTTH and some critical applications. The pigtails provide flexible connection inside passive equipments, patch panels, ODFs and closures. We offers diverse range of single fiber ferrule connectors which are manufactured with precision factory mounting and polishing techniques to assure high transmission quality.

NEXCONEC® Mode Conditioning Patch Cord is used for Gigabit Ethernet applications where Gigabit routers and switches are installed into existing multimode cable units. These patch cords mainly prevent the differential mode delay, by setting the launch from the single-mode to be offset from the center of the multimode fiber. Nexconec patch cords cater to the customer technical requirements and offers cost effective solution. The patch cords use both UPC and APC zirconia ferrule connectors which are manufactured with precision factory mounting and polishing techniques to assure high transmission quality.

NEXCONEC® Armored Patch Cords are suitable for harsh environmental conditions without the need for additional protection. They are typically used in industrial environments, outdoor to indoor telecommunication networks, FTTx, FTTH and some critical applications. The patch cords provide sturdy interconnectivity to active equipment, passive optical devices and cross-connects. Armoured patch cords come double armoured with steel tape for better crush resistance and steel mesh for better tensile strength. Through this they have a high durability and a good crush resistance to ensure a longer life.

NEXCONEC® Flat Twin Duplex Patch Cord provide a more robust alternative to standard zipped duplex patch cables and provides good protection against kinking and crushing, two of the most common issues faced when installing cables. In spite of the additional durability, the cable is still flexible and very compact. Recommended for patching where frequent handling is required, or internal fiber runs where a stiffer, more rugged cable is required, these are available in Multimode and Single Mode with all of the standard connector options. The cable used is also known as a Flat Twin or Duplex Breakout Cable.

NEXCONEC® Master Reference are ideal for high precision and high-performance optical test applications. The test leads are terminated with the highest quality physical contact (singlemode) zirconia ferrule connectors. The connectors are manufactured with precision mounting and polishing techniques which ensure excellent mating characteristics and optimised optical performance.

The SN® Fiber Optic Patch Cords is the ultimate designed and optimized for next-generation data rates, the SN® patch cord offers network operators the chance to densify their existing legacy infrastructure whilst at the same time providing an upgrade path to 400G and beyond. It is suitable for termination to either 1.6 mm or 2.0 mm round cable that incorporates a ruggedized jacket and internal strain relief. The SN® connector has an integrated ‘push-pull’ boot that simplifies insertion and removal of the connector even in dense patch panels where finger access is limited. A gang-clip can be added to four individual SN® connectors allowing them to be patched simultaneously to either adapters or 4-channel (8 fibers) transceivers (subject to product selection).
