F/UTP CAT6, 4-pair cable (100 Ohm) with cross separator, shielded with an aluminum/polyester tape, LSZH (Low Smoke Zero Halogen) flame retardant jacket, tested up to 500 MHz Suitable for the realization of transmission channels of Class E

SF/UTP CAT5E, 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape and tinned copper braid, LSZH (Low Smoke Zero Halogen) outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

F/UTP CAT5E, 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape, PVC outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

F/UTP CAT5E, 4-pair cable (100 Ohm), shielded with an aluminum/polyester tape, LSZH (Low Smoke Zero Halogen) outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

U/UTP CAT5E, unshielded 4-pair cable (100 Ohm), tested up to 200 MHz, Double jacket: PVC flame retardant inner jacket and PE outer jacket. Suitable for the realization of transmission channels of Class D.

U/UTP CAT5E, unshielded 4-pair cable (100 Ohm), with PVC outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

U/UTP CAT5E, unshielded 4-pair cable (100 Ohm), with LSZH (Low Smoke Zero Halogen) outer jacket, flame retardant, tested up to 200 MHz Suitable for the realization of transmission channels of Class D.

Nexconec high density fiber optic modular fixed frame is designed to provide housing for connections from an incoming preterm or trunks on the rear to patch cords on the front. The Open frame allows for quick and easy installation. It accepts up to 3 LGX Thru Adapter Plates, MTP/MPO Cassettes or Splice Cassettes. Panel is supplied unloaded and the modules and plates are supplied separately.

Nexconec high density fixed frame accepts up to 3 LGX Modules or LGX pass-thru adapter plates for a total of 72FO with LC configuration. Panel is supplied unloaded and the modules and plates are supplied separately.

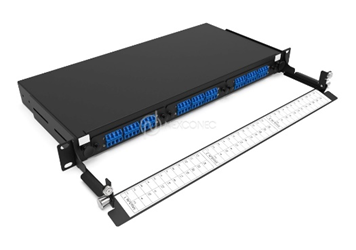

Nexconec sliding patch panel accepts 3 LGX pass-thru adapter plates for a total of 72FO with LC configuration. Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Panel is supplied unloaded and the modules and plates are supplied separately.

Nexconec sliding patch panel accepts 3 LGX pass-thru adapter plates for a total of 72FO with LC configuration. Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Panel is supplied unloaded and the modules and plates are supplied separately.

Nexconec sliding patch panel accepts 12 LGX pass-thru adapter plates for a total of 288FO with LC configuration (144 in SC). Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged front and rear removable doors as well as lid. Panel is supplied unloaded and the modules and plates are supplied separately.

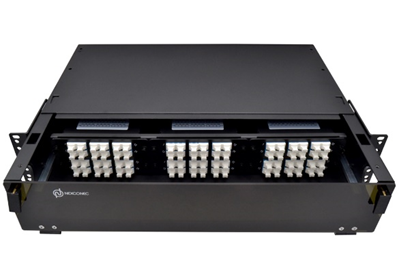

Nexconec sliding patch panel accepts 6 LGX pass-thru adapter plates for a total of 144FO with LC configuration (72 in SC). Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged front and rear removable doors as well as lid. Panel is supplied unloaded and the modules and plates are supplied separately.

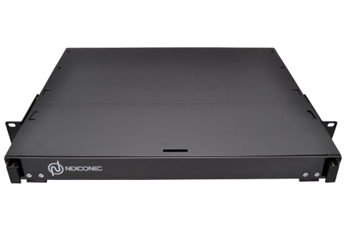

Nexconec Enclosure accepts 3 LGX pass-thru adapter plates for a total of 72FO with LC configuration (36 in SC). Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged front and rear removable doors as well as lid. Panel is supplied unloaded and the modules and plates are supplied separately.

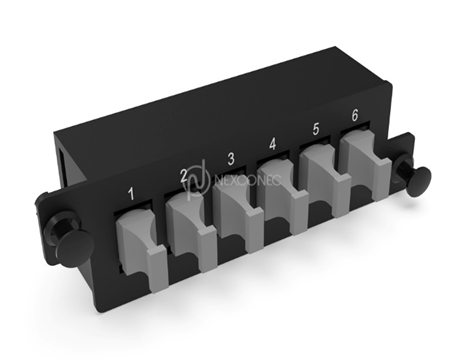

The HD MTP/MPO adapter plates are made to fit all Nexconec HD fiber management solutions, including rack mount patch panels, supporting MTP/MPO for high density solutions. This MTP/MPO adapter plate can accommodate up to 6 or 12 MPO adapters with options of key-up to key-down, or key-up to key-up, which offers the flexibility to the MTP/MPO trunk to adapts different installation requirements with various polarities. The recessed adapters mounted in the plate gives the better bending radius when routing the MTP/MPO trunks cables. Each MTP/MPO fiber adapter plate comes with protective caps made of polycarbonate to prevent dust and debris from entering.

Nexconec carries numerous HD-style adapter plates to meet your fiber management connectivity requirements. The adapter plates are made to fit all Nexconec HD MP4 rackmount fiber management solutions. Supporting LC, SC, E2000 and MTP/MPO for high density solutions.

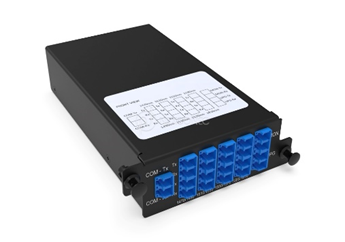

Nexconec passive 8 channels HD CWDM MUX or and DEMUX cassette, allows you to multiplex/de-multiplex eight separate channels into one pair of fiber. Its protocol and rate transparent supporting different applications such as 1G/10G/25G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link. With modular design, the Mux can be combined with CWDM/DWDM modules, OADMs and MTP cassettes in 1U FHD patch panel. Also it can support a wide range of architectures from simple point-to-point to ring configurations.

Nexconec® HD MTP/MPO-Splicing cassettes allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. This metallic body module is designed to splices up to 24F with 2xMPO Base-12 Single mode/Multimode MTP/MPO connectors. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon, or sandwich (ANT) type. The HD MTP/MPO-Splicing cassette is easy to plug into all Nexconec® HD range panels. These MPO splice cassettes are preloaded with adaptors and pigtails, supplied with splicing accessories.

NEXCONEC® HD splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. For up to 24 splices in LC configuration or 12 in SC. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type

NEXCONEC HD cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The HD cassettes are designed to easily plug into NEXCONEC HD 1U 4 slot chassis and each chassis can populate up to 96F. The cassettes eliminate the need for splicing reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
