FIBER SYSTEMS

Nexconec Breakout Patching Panel is designed to provide housing for connections from an incoming preterm or trunks from the rear of the panel to patch cords on the front. The Open frame allows for quick and easy installation. The Open frame allows for quick and easy installation. It accepts up to 144FO with LC.

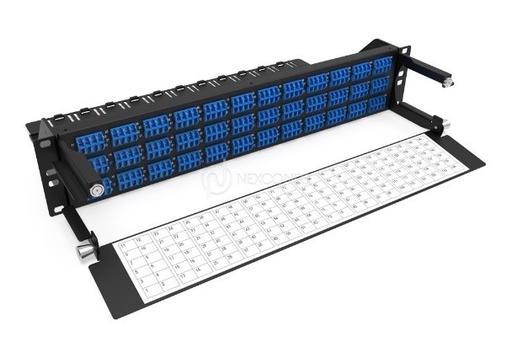

NEXCONEC® 2U Patching Panel is designed with utmost precision and durability to provide housing for connections of an incoming preterm or trunk from the rear of the panel to patch cords on the front. Its open frame high-density design ensures quick and easy installation as well as enables accommodation of up to 288FO with LC.
This patching panel comes with 2 rear bars (Included in the package), Standard size rear bar with 206mm Depth + Short size rear bar with 156mm depth, allowing you to customize your setup according to your specific requirements.

Nexconec High Density MTP/MPO to LC breakout Patch Panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center. Up to 144 Fibers in only 1U space.

Nexconec High Density 96 Fibers 1U Breakout Fiber Patch Panel is designed to connect 40G QSFP ports with MTP/MPO fiber cables, mapping to the back of the panel, then breaking out as 48x 10G on the front panel with LC fiber cables. All breakout panels meet the requirements of TIA/EIA, IEC standards.

NEXCONEC® High Density 144 Fibers 1U Breakout Fiber Patch Panel is designed to connect 40G QSFP ports with MTP®/MPO fiber cables, mapping to the back of the panel, then breaking out as 72x 10G on the front panel with LC fiber cables. The panel provides MPO and LC Premium terminations with remarkable low insertion losses, ensuring exceptional performance for high-speed networks with stringent low power budgets. All breakout panels meet the requirements of TIA/EIA, IEC standards.

NEXCONEC® 1U Pivot Patch Panel is an innovative, high density pivot panel designed to accept 24 SC Simplex/LC Duplex adapters in each of two ½ RU trays within 1U space (Up to 96FO in LC). Each tray effectively manages the incoming fibers, pigtails and splices. Each tray offers individual pivoting up to 120° to ensure easy access during installation or rework without any interference with the existing cable or fibers.
The remarkable panel design includes a detachable see-through lid and a transparent hinged drop-down door to ensure easy access, simplifies labelling and maintenance routines. Ventilation tracts within the panel enable constant airflow, facilitating optimal . cooling for the active equipment with utmost efficiency. The pivot panel can be pre-loaded completely with the required adapters and pigtails.

NEXCONEC® 1U 96FO MTP®/MPO to LC breakout pivot patch panel offers an expandable deployment for implementations in 40G/100G networks, in the meantime providing greater protection to the installed patch cords in main, horizontal and equipment area of data center. Each tray offers individual pivoting up to 120° to ensure easy access during installation or rework without any interference with the existing cable or fibers.
The remarkable panel design includes a detachable see-through lid and a transparent hinged drop-down door to ensure easy access, simplifies labelling and maintenance routines. Ventilation tracts within the panel enable constant airflow, facilitating optimal cooling for the active equipment with utmost efficiency.

NEXCONEC® 1.5U Pivot Patch Panel is an innovative, high density pivot panel designed to accept 24 SC Simplex/LC Duplex adapters in each of ½ RU trays within 1.5U space (Up to 144FO in LC). Each tray effectively manages the incoming fibers, pigtails and splices. Each tray offers individual pivoting up to 120° to ensure easy access during installation or rework without any interference with the existing cable or fibers.
The remarkable panel design includes a detachable see-through lid and a transparent hinged drop-down door to ensure easy access, simplifies labelling and maintenance routines. Ventilation tracts within the panel enable constant airflow, facilitating optimal cooling for the active equipment with utmost efficiency.
The pivot panel can be pre-loaded completely with the required adapters and pigtails.

NEXCONEC® 1.5U 144FO MTP®/MPO to LC breakout pivot patch panel offers an expandable deployment for implementations in 40G/100G networks, in the meantime providing greater protection to the installed patch cords in main, horizontal and equipment area of data center. Each tray offers individual pivoting up to 120° to ensure easy access during installation or rework without any interference with the existing cable or fibers.
The remarkable panel design includes a detachable see-through lid and a transparent hinged drop-down door to ensure easy access, simplifies labelling and maintenance routines. Ventilation tracts within the panel enable constant airflow, facilitating optimal cooling for the active equipment with utmost efficiency.

NEXCONEC® 3U Pivot Patch Panel is a cutting-edge, super high density pivot panel designed to accept 24 SC Simplex/LC Duplex adapters in each of six ½ RU trays in the 3U space (Up to 288FO in LC). This innovative panel effectively organizes incoming fibers, pigtails, and splices. Each tray is designed with the convenience of 120° individual pivoting, ensuring hassle-free access during installation or rework, without any disruption to existing cables or fibers.
The remarkable design of the panel incorporates a detachable see-through lid and transparent hinged drop-down doors in each ½ RU trays for effortless accessibility, streamlining labeling and maintenance procedures. Incorporated ventilation pathways within the panel guarantee uninterrupted airflow, ensuring superior cooling for the active equipment with unparalleled efficiency.
The pivot panel can be pre-loaded completely with the required adapters and pigtails.

Rotary Swing out patch panels are designed for the FTTH networks, specifically for the street cabinet where full front access is required. This 1U panel accommodates 48 SC/APC adapters and is loaded with bend insensitive pigtails G657A2 and the complete splicing trays and rooting.

Rotary Swing out 3U patch panels are designed for the FTTH networks, specifically for the street cabinet where full front access is required. This 3U panel accommodates 144 SC/APC adapters and is loaded with bend insensitive pigtails G657A2 and the complete splicing trays and rooting.

Nexconec 1U rotary splitter panel is widely used in optical communication networks, completing such functions as splicing, splitting and 64-fiber distribution. It can be installed optical splitter (maximum splitting ratio: one 1X64 optical splitter) to implement optical splitting and capacity expansion. After the product left-handed rotated, fixing optical splitter and back panel of splicing tray left-handed rotated. Backbone inlets adopt embedded way, convenience for operation and maintenance.

Nexconec 3U rotary splitter panel is widely used in optical communication networks, completing such functions as splicing, splitting and 128-fiber distribution. It can be installed optical splitter (maximum splitting ratio: two 1X64 optical splitter) to implement optical splitting and capacity expansion. After the product left handed rotated, fixing optical splitter and back panel of splicing tray left handed rotated. Backbone inlet adopt embedded way, convenience for operation and maintenance.

NEXCONEC® 1U 4 ports SC fiber optic panel & shelve, mounted on 19” standard network racks. Optical module of this panel is equipped with 4x SC simplex adapter ports & a splice tray for the storage and splicing of 4 fibers and another Electro-optical compartment provides maximum size of (W)324mm x (D) 286mm large space for fiber/cables management.
Use this fiber cable storage patch panel in the telecommunication room, data centers for storage of excess fibers and cables to make your fiber cable management neat and professional.

The NEXCONEC® 1U 12 ports SC optical fiber panel & shelve is a 19” (inches) standard mounting type metal rack, uniquely built to contain two separate compartments.
1. Optical Compartment: It comes with an optical area equipped with 6x SC duplex adapter ports & a splice tray for the storage and splicing of 12 fibers.
2. Electro-optical Compartment: The maximum size of (W)305.60mm x (D) 260mm area has capacities to accommodate and provide support for an electro-optical media converter (not included).
This fiber cable storage panel is ideal to use in the telecommunication room, data centers to store excess fibers and cables. It could make your fiber cable management neat and professional.

Nexconec 1U fiber cable storage sliding panel, mounted on 19” network racks. This slide-out tray fiber cable storage patch panel could make your fiber cable management neat and professional in the telecommunication room, data centers to storage excess fibers and cables.
Easy front access with inner cable management spools which provides protection and coiling of the excess lengths of the patch cords.

NEXCONEC NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.

NEXCONEC® MPO TRANSITION NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 40G to 10G version, each cassette can hold 3x 8f MPO Base-8 LC fanouts, while the 100G to 10G version can hold 1x 24F MPO Base-24 LC fanout.

NEXCONEC Transition NGX cassettes are pre-terminated ultra high density modules MTP/MPO-LC fanouts that are suitable for up to 40G/100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 24 Fibers 40G to 10G version, each cassette holds 3x 8f MPO-LC fanouts.
